Laboratory Emulsifier
The PSF laboratory emulsifier is designed for high shear mixing in formulation testing and small-batch production. It uses a rotor–stator structure to rapidly disperse and emulsify immiscible liquid–liquid and solid–liquid systems. Through high-speed rotation, the equipment generates strong shear, impact, and cavitation forces, allowing materials to be processed into stable emulsions or suspensions. It is suitable for applications in biomedicine, food processing, fine chemicals, cosmetics, coatings, inks, and nanomaterials, supporting process development and scale-up.
| Model | Motor power (kW) | Power supply | Handling ability (ml) | Speed (rpm) | Configuring head | Material | Weight (kg) |
| PSF | 0.4 | 220V 50Hz | 300-10000 | 0-8000 | ⌀70(Stator or long, round and mesh is optional) | SS304 | 25 |
High Shear Emulsifying Head

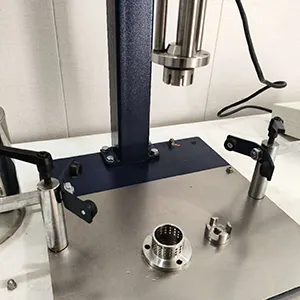

Clamp
Control Unit

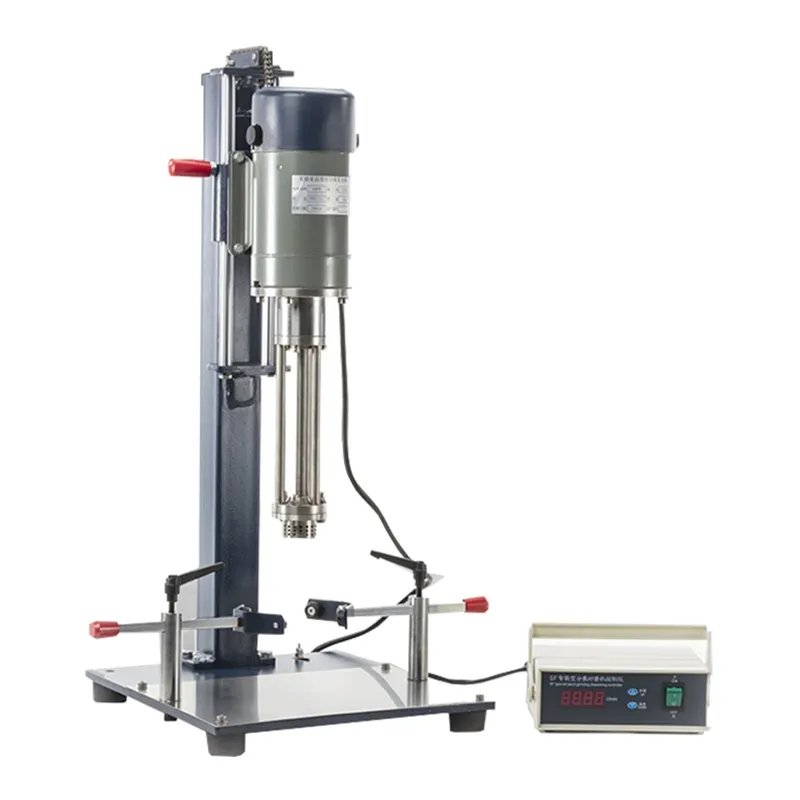

Electric Lifting Emulsifier
Suitable for wet processing of liquid–liquid and solid–liquid systems.
Paints and Coatings
Inks
Leather Coatings
Pesticides and Fertilizers
Viscous Materials
Cosmetics
Chemicals
New Materials
- High shear emulsification performance
The rotor–stator system generates strong mechanical and hydraulic shear, allowing particle size to be reduced to micron or even submicron levels, supporting stable emulsions. - Wide speed adjustment range
Stepless speed control up to 28,000 rpm with digital display enables accurate adjustment of mixing conditions during laboratory testing. - Interchangeable working heads
Different stator designs, including coarse, fine, and perforated types, can be selected to match various material characteristics and processing requirements. - Flexible batch capacity
Handles volumes from 0.2 mL to 5000 mL, suitable for both small-scale experiments and pilot testing, with processing capability for viscosities up to 5,000–10,000 cP. - Compact and adaptable operation

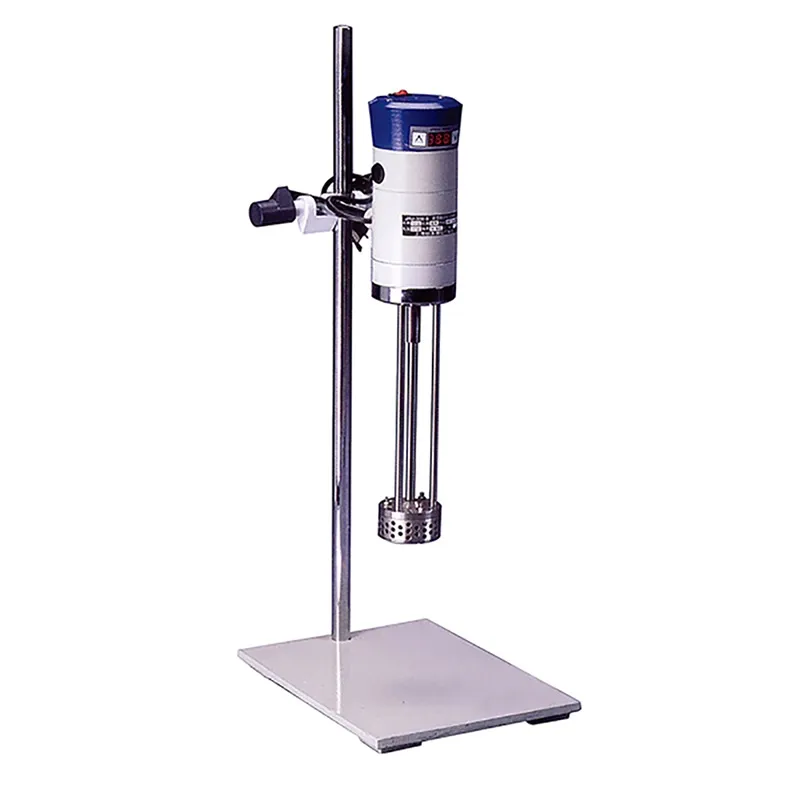

Available in handheld or stand-mounted configurations with manual lifting, making it easy to operate and position in laboratory environments. - Corrosion-resistant and hygienic materials
All wetted parts are made from SS304 or SS316L stainless steel, meeting requirements for chemical, pharmaceutical, and food-related applications.
Adaptable high shear working heads
Different rotor-stator configurations can be selected to match specific material requirements, allowing the emulsifier to handle a wide range of formulations.
Optional electric lifting system
In addition to standard manual lifting, electric lifting can be configured to improve handling efficiency during repeated testing.
