SDF550
Laboratory Disperser
-
Video
-
-
The laboratory disperser is built to handle different mixing and dispersion tasks within a single unit, making it suitable for formulation testing and small-batch trials. It combines mixing, grinding, and dispersing functions, allowing users to switch between different working heads depending on the process. With a wide speed range and adjustable control, it supports detailed parameter testing and helps generate reliable data for scale-up. Its compact design and adaptable configuration make it suitable for applications in coatings, inks, pigments, food, daily chemicals, and nanomaterials.
Technical Specifications
| Motor Power (kW) | Power supply | Handling capacity (ml) | Speed (rpm) | Disc (⌀) | Lift height （mm） | Overall size (mm) | Weight (kg) |
| 0.55 | 220V 50Hz | 200-10000 | 0-8000 / 0-10000 | Dispersing disc: 50 / 60 Mill disc: 45 / 60 | 300 | 450x500x800 | 45 |
Components
High speed dispersing disc
Customized clamp
Control panel
Wear parts
Applications
Suitable for wet processing of liquid–liquid and solid–liquid systems.
Paints and Coatings
Inks
Leather Coatings
Pesticides and Fertilizers
Viscous Materials
Cosmetics
Chemicals
New Materials
- Multiple function in one machine
Combines mixing, grinding, and dispersion functions, allowing different processes to be completed by changing the working head, reducing the need for multiple machines. - Wide and precise speed control
Uses frequency conversion or digital PID control to provide stepless speed adjustment up to 10,000 rpm, with direct speed display for accurate operation. - Adjustable lifting system
Hand-operated lifting mechanism with a stroke of 200–300 mm allows flexible positioning and easier handling during experiments. - Interchangeable working heads
Available with multiple dispersing and grinding head sizes, allowing selection based on material characteristics and testing requirements. - Flexible batch capacity
Handles volumes from 200 mL to 10,000 mL, covering both laboratory-scale testing and small-batch production. - Material compatibility and hygiene
All material-contact parts are made from SS304 or SS316L stainless steel, supporting corrosion resistance and meeting requirements for chemical, pharmaceutical, and food-related applications.
- Efficient and stable motor performance
Equipped with a permanent magnet brushless DC motor or variable frequency motor, providing stable operation, high torque, low noise, and reduced maintenance due to the absence of carbon brushes. - Secure and stable operation
The clamping device helps fix the container in place during operation, improving safety and reducing vibration during high-speed dispersion. - Optional cooling support
Some models can be equipped with jacketed containers, allowing cooling water to control temperature rise during processing.

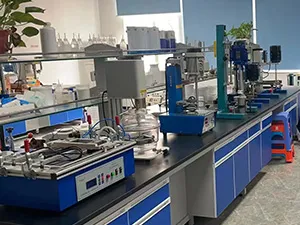

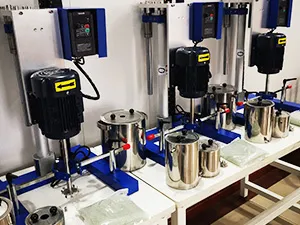

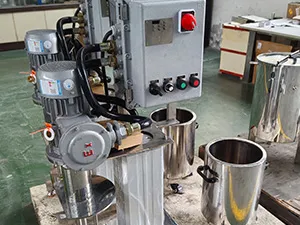

Visual Reference of SDF550 Laboratory Disperser for Delivery
