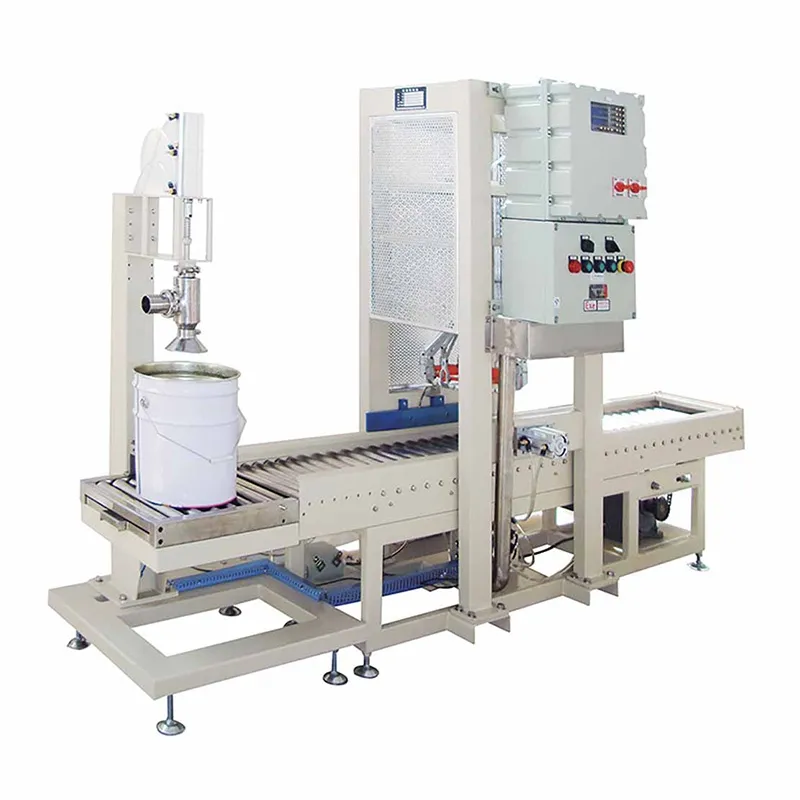

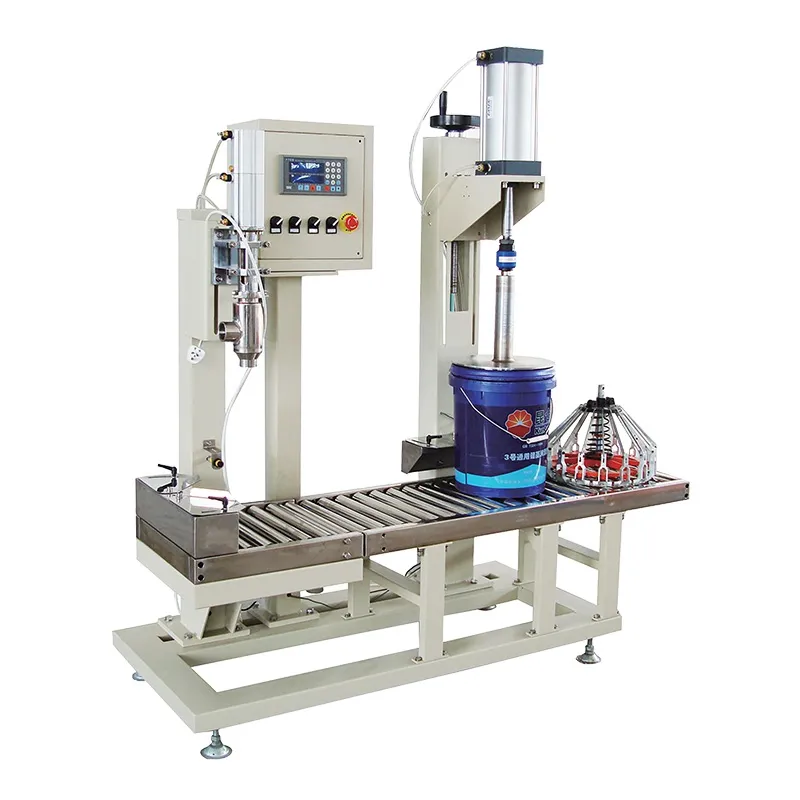

Net Weight Filling Machine
-
Video
-
-
PFM Filling Machine is an automated packaging equipment designed for filling of liquid materials with good fluidity, where accurate dosing and stable operation are required. It is suitable for products such as water-based solutions, solvents, and oils.
The system can operate using different filling principles, including volumetric piston pumping, gravity time-based flow, or electronic weighing, depending on process requirements. With PLC control, it enables consistent and precise filling across batches. The machine is equipped with anti-drip filling heads, lifting mechanisms, and conveying systems, supporting efficient and clean packaging. It is widely used for filling products such as detergents, edible oils, alcoholic beverages, pesticide emulsions, and other liquid materials in industries including daily chemicals, food processing, pharmaceuticals, agrochemicals, and fine chemicals.
| Item | Model | ||||
| Semi-auto Filling Machine | Filling range (kg) | 0.5-5 | 2-10 | 5-30 | 10-50 |
| Filling speed(L/Min) | 160-240 | 160-240 | 160-240 | 160-240 | |
| Rate of accuracy | 0.25 | 0.25 | 0.25 | 0.25 | |
| Accuracy | ±0.2% | ±0.2% | ±0.2% | ±0.2% | |
| Power | AC220V/50Hz±2Hz | ||||
| Air Source | Flux 0.1m³/min Pressure: 0.4-0.6Mpa | ||||
| Working temp. (℃) | 0 - 40 | ||||

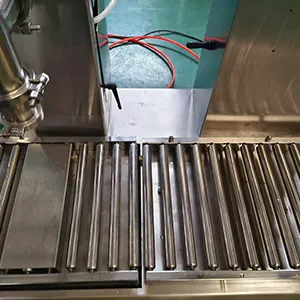

Filling nozzle

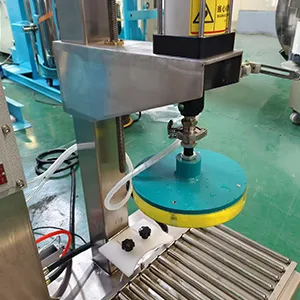

Capping device

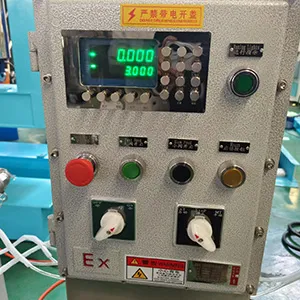

Explosion-proof operation panel

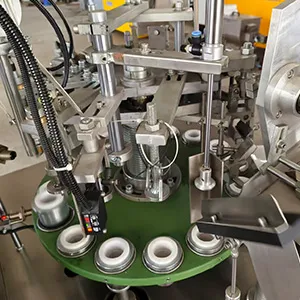

Filing for tubes
Suitable for filling liquid materials with good fluidity, including low to medium viscosity products used in wet processing.
Paints and Coatings
Inks
Leather Coatings
Adhesive
Viscous Materials
Cosmetics
Chemicals
New Materials
- High filling accuracy
Uses a 316L stainless steel plunger metering pump or high-precision weighing system, achieving filling accuracy within ±0.5% to ±1% for consistent dosing. - Anti-drip filling design
The filling nozzle is equipped with an anti-drip mechanism to prevent material leakage between cycles, helping keep containers and equipment clean. - Flexible container compatibility
Suitable for round, square, flat, and different neck-size containers. Adjustments are straightforward, allowing quick changeover between bottle types. - Hygienic construction
All wetted parts are made from SS304 or SS316L stainless steel, with food-grade seals, meeting GMP requirements for product safety and cleanliness. - PLC control with recipe storage
Equipped with a PLC control system and HMI interface, capable of storing up to 50 filling programs, with adjustable dosing for different products and easy operation.
- Customizable material hopper
Can be equipped with a customized hopper for material storage, supporting continuous and stable feeding during filling operations. - Optional dual filling nozzles
Double-nozzle configuration can be provided to increase filling efficiency and adapt to different production requirements. - Quick disassembly and cleaning
The plunger pump uses a quick-connect design, allowing easy disassembly for cleaning, disinfection, and maintenance without the need for special tools. - Flexible control and safety configuration
Options include fully pneumatic control, explosion-proof electrical systems, or PLC control, making the machine suitable for filling flammable solvent-based materials while ensuring safe operation. High-precision configurations can achieve filling accuracy up to ±0.2%. - High-precision weighing system
Equipped with high-accuracy weighing sensors from international brands such as Mettler Toledo, with platform accuracy exceeding 0.02%, ensuring reliable and consistent measurement. - Support for automated filling lines
Can be integrated into automatic filling lines for high-viscosity materials, enabling coordinated operation with upstream and downstream equipment.
